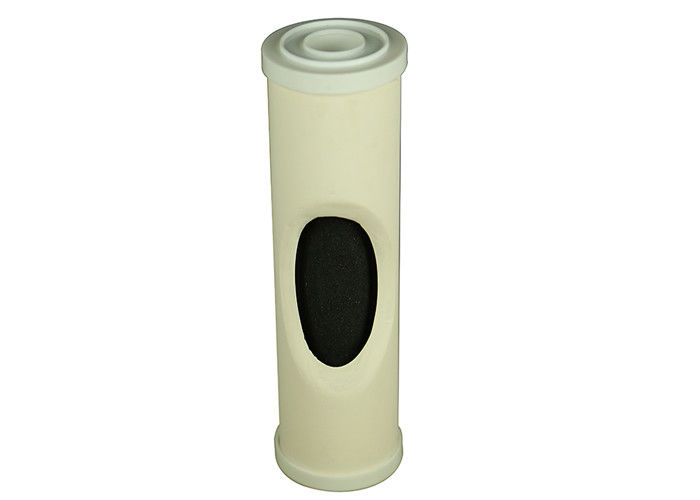

Standard OBE ceramic cartridge with CTO insert, Imperial Sterasyl, media: ceramic OD 2.5 inch

Standard OBE ceramic cartridge with CTO insert, Imperial Sterasyl, media: ceramic OD 2.5 inch

  • Standard OBE ceramic cartridge with CTO insert, Imperial Sterasyl, media: ceramic OD 2.5 inch
Standard OBE ceramic cartridge with CTO insert, Imperial Sterasyl, media: ceramic OD 2.5 inch
Product Details:
Place of Origin: China
Brand Name: Purescience
Certification: ISO9001/SGS
Model Number: B-BS
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: 2
Packaging Details: carton
Delivery Time: 10 days
Payment Terms: L/C, T/T, D/P
Contact Now
Detailed Product Description
Product Name: Pottery Filter Cartridge Filter Media: Ceramic, Optional GAC Or CTO Insert
Micron Rating: 0.2 - 0.5 µm Work Pressure: 0.15 - 0.3 Mpa
PH Range: 5.5 - 9.5 Flow Rate: 1.5 L/H - 3 L/H @ 10" Length
Diameter: Standard 25 - 250mm Length: 7", 10"
Highlight:

industrial filter cartridges

,

stainless steel filter cartridges

Standard OBE ceramic cartridge with CTO insert, Imperial Sterasyl, media: ceramic OD 2.5 inch



Description

This silver impragnated ceramic cartridge, which contains a specially formulated self-sterilizing silver compound, hence, the sterasyl element is permanately sterilized even after cleaning. The cartridge offers benefit to your health for cyst, turbidity, particulate reduction, and self-sterilizing effects.



Features and Benefits

  • Ceramic cartridge elements are Double-Open-Ends (DOE).
  • 2x9.75 inch ceramic cartridges is designed to fit industry standard 10 inch housing.
  • Ideal prevention for reverse osmosis (RO) membrane microbiological fouling.
  • Additional safety for UV systems in reduction of turbidity down to 0.07 NTU.
  • Cleanable up to 60 times.

Materials of construction

Description B-B Normal B-B Steryl B-B CTO B-B + GAC
Filter precision 0.2 - 0.5 µm 0.2 - 0.5 µm 0.2 - 0.5 µm 0.2 - 0.5 µm
Work pressure 0.15 - 0.3 Mpa 0.15 - 0.3 Mpa 0.15 - 0.3 Mpa 0.15 - 0.3 Mpa
Temperature (℃) 5 - 38 5 - 38 5 - 38 5 - 38
PH range 5.5 - 9.5 5.5 - 9.5 5.5 - 9.5 5.5 - 9.5
Gravity filter yes yes yes yes
Normal replacement cycle 12 monthes 12 monthes 12 monthes 12 monthes
Flow rate at 0.3 Mpa / 3 bar 1.5 - 3 LPM 1.5 - 3 LPM 1 - 2.5 LPM 1 - 2.5 LPM
Treatment capacity 10000 L 10000 L 6000 L 6000 L
Bacteria removal rate % 99.99 % 99.99 % 99.99 % 99.99 %
Cyst removal rate % 99.99% 99.99 % 99.99 % 99.99 %
Chlorine removal rate % No no 96% 96%
Heavy metal (Lead) removal % No no 80% 80%



Customized available

Standard OBE ceramic cartridge with CTO insert, Imperial Sterasyl, media: ceramic OD 2.5 inch 0Standard OBE ceramic cartridge with CTO insert, Imperial Sterasyl, media: ceramic OD 2.5 inch 1Standard OBE ceramic cartridge with CTO insert, Imperial Sterasyl, media: ceramic OD 2.5 inch 2

For gravity filter - undersink, counter top, or water mount water filter housing

Standard OBE ceramic cartridge with CTO insert, Imperial Sterasyl, media: ceramic OD 2.5 inch 3Standard OBE ceramic cartridge with CTO insert, Imperial Sterasyl, media: ceramic OD 2.5 inch 4
