Waste Water Treatment Plant Agitator for sizing chemical mixing 0.25kw to 1.5kw

Product Details:

Place of Origin:	China
Brand Name:	Purescience
Certification:	ISO9001/SGS
Model Number:	JGM-10

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	wooden box
Delivery Time:	4-6 weeks
Payment Terms:	T/T, L/C, D/P
Supply Ability:	500 pieces per month

Contact Now

Detailed Product Description

Product Name:	Industrial Agitator JGM-10	Motor:	0.25KW / 0.55KW / 0.75KW / 1.5KW
Protection:	IP55 (optional Explosion Proof)	Shaft Length:	800mm - 1500mm
Impeller Dia:	160mm - 1000mm	Voltage:	380V / 50HZ / 3PH
Material:	SS304 / 316 / 316L / Q235 / Ti	Max Mixing Capacity:	650L (dilute) / 350L (dense)
Anti-corrosion Option:	None / Rubber Liner / PTFE Liner
Highlight:	sewage treatment plants , industrial waste water treatment

Water treatment Agitator for sizing chemical mixing 0.25kw to 1.5kw

Specifications:

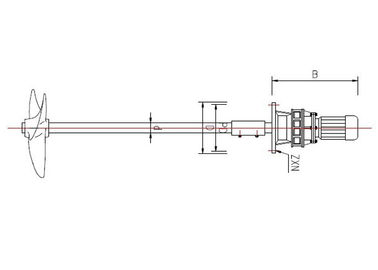

Model	Power (kw)	Reduction ratio	RPM	Shaft L(mm)	Shaft Dia.(mm)	Impeller Dia.(mm)	B (mm)	PD (mm)	D (mm)	Z x N(Φ) (mm)	Max capactiy Dilute - Middle
JGM10-25-9	0.25	1:9	167	800	25	160	392	134	160	4x11	650 - 300
JGM10-25-11		1:11	136			200
JGM10-25-17		1:17	88			300
JGM10-25-29		1:29	52			350
JGM10-25-35		1:35	43			400
JGM10-25-43		1:43	35			500
JGM10-55-11	0.55	1:11	136	1200	30	350	410	160	190	4x11	2500-800
JGM10-55-17		1:17	88			400
JGM10-55-29		1:29	52			600
JGM10-55-35		1:35	43			700
JGM10-75-11	0.75	1:11	136	1500	30	400	415	160	190	4x11	4000-1500
JGM10-75-17		1:17	88			550
JGM10-75-29		1:29	52			700
JGM10-75-35		1:35	43			800
JGM10-150-11	1.5	1:11	136	1500	35	450	460	200	230	6x11	8000-3000
JGM10-150-17		1:17	88			600
JGM10-150-29		1:29	52			800
JGM10-150-35		1:35	43			900
JGM10-150-43		1:43	35			1000

Description

The water treatment agitator we offer, that can be mounted on beams, flanged, channels, clamped, etc. Our water treatment agitator is highly appreciated by the customers due to its dimensional accuracy, durability, longer operational life and sturdy construction.

Features:

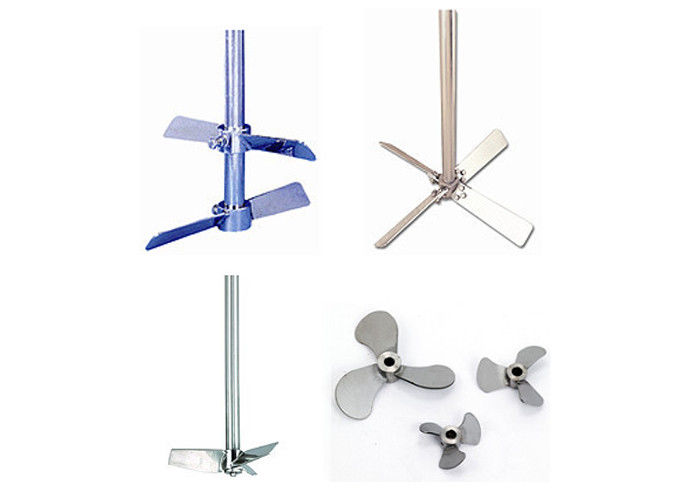

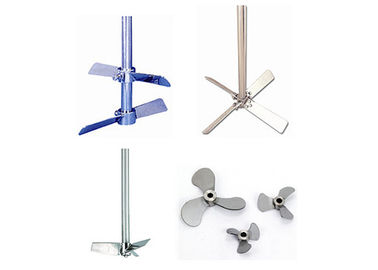

Variety of impellers upon the specific application requirement
The tailer made agitators for various mixing solution
The right angle, parallel shaft, gear reduced and direct driving motors
Different sealing options: gland, single mechanical seal, double mechanical seal, cartridge seal, etc.

Applications for water and waste water treatment mixers

Chemical Addition
Chemical Storage
Rapid Mixing
Flash Mixing
Coagulant Mixing
Flocculation
Activated Carbon Mixing
Slurry Mixing
Polymer Addition
Flocculation
Equalization & Neutralization
Anoxic Dentrification
Anaerobic Digestion
Chlorination

Competitive advantage

We can supply all types of industrial agitators, which are used for different applications. These industrial agitators are specially designed with the help of helical geared motors that give better efficiency as compared the traditional worm gear box. Our mixers are available in different sizes ranging from 0.25KW to 22KW. We also provide different type of agitators for different application. The range of our agitators are made from stainless steel (SS304 / 316L ), mild steel, alloy as requred.
