All Flow Technology
 |
| Place of Origin: | China |
| Brand Name: | Purescience |
| Certification: | ISO9001/SGS |
| Model Number: | TF-L2 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | foam wrapped |
| Delivery Time: | 4 -6 weeks |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 500 pieces per month |
| Product Name: | Tube Type Filter | Material Of Construction: | SS304, 316L, Duplex 2205, Super Duplex 2507, |
|---|---|---|---|
| Capacity: | 200m3/hour | End Connection: | Threaded NPT / BSP, Flange, Tri Clover Adaptor |
| Gasket / O-ring Materials: | Neoprene, Nitrile, Silicone, Viton, Buna-N, EPDM, PTFE | Port Size: | 2" , 2.5" , 3" , 4" |
| Highlight: | industrial filter cartridges,stainless steel filter cartridges |
||
Stainless steel tube filter for food & beverage, bio-technology 1.0Mpa
Specifications:
| Content | Data |
| Max operation pressure | 1.0 Mpa |
| Max operation temperature | 110 ℃ |
| Pressure tolerance on welding seam | 0.85 |
| Corrosion by acid | 0 |
Dimensions:
| Model |
No of cartridges |
A | B | C | D | E | ||||
| TF-L2 | 2" | 860 | 650 | 600 | 760 | 550 | 500 | 102 | 50 | 90 |
| TF-L2.5 | 2.5" | 860 | 650 | 600 | 760 | 500 | 500 | 102 | 50 | 90 |
| TF-L3 | 3" | 860 | 650 | 600 | 740 | 530 | 480 | 125 | 50 | 90 |
| TF-4 | 4" | 860 | 650 | 600 | 740 | 510 | 480 | 154 | 50 | 120 |
Description:
The surfaces are mirror polished to0.4um Ra for fastly and easily surface cleaning, which minizes the risk of contamination, improves clean and enhances corrosion resistance. Our tube filter connection port can be desigend upon clients's site tube type and dimension. The tube filter is easy to operate and maintenance with low cost.

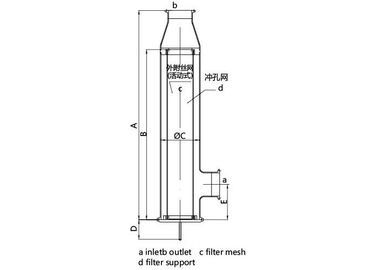

Structure view:
Key features

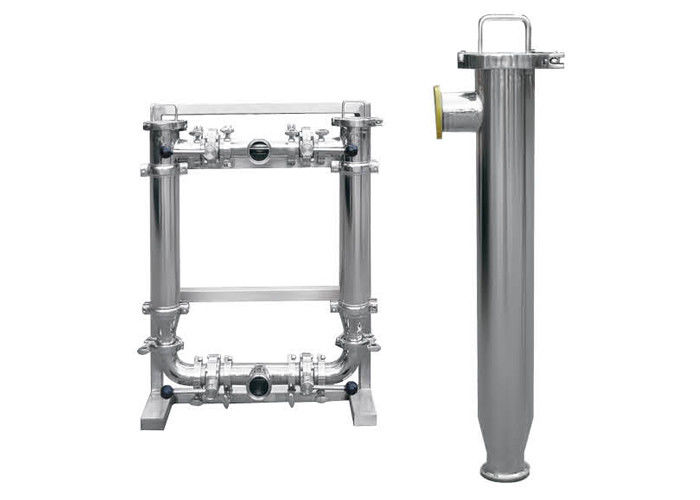

The double pipe tube filter & strainer is widely applied to prefilter the milk, sugar syrup, food & beverage, liquid cement, China traditional drug fluid, CIP clean liquid, to retain solid particles. The double filter tubes can work simultaneously or alternately.
Filter element structure:
Filter screen or sieve tube screen, customized available.
Surface finish: mirror polished
Port connection : grooved coupling, flange or thread, tri clover clamp, etc.
Applications:
Competitive advantage
The Unfiltered liquid fluid enters the double pipe tube filter & strainer, then passes down through them. Solid particles are retained inside / outside of filter / strainer depending upon design and are removed when the unit is serviced.
