All Flow Technology
 |
| Place of Origin: | China |
| Brand Name: | Purescience |
| Certification: | ISO9001/SGS |
| Model Number: | CB1003 |
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton |
| Delivery Time: | 3 weeks |
| Payment Terms: | L/C, T/T, D/P |
| Supply Ability: | 2000 pieces per month |
| Product Name: | Chemical Filtration System CB-1003 | Material: | FRPP / PVDF / CPVC |
|---|---|---|---|
| Capacity: | 40L/min / 60L/min | Filtration Area: | 0.10 M2 / 0.15 M2 |
| Suitable Plating Tank: | 200L / 400L / 600L | Temperature: | 65 ℃ |
| Pump Power: | 65w / 95w | Inlet/out Port Size: | 1" |
| Highlight: | water filtration systems,industrial filtration systems |
||
CPVC chemical filtration system for gold electro plating solution 70L/min 180W
Specifications:
| Model | CB-1002 | CB-2002 | CB-1003 | CB-2003 |
| Filter element type | Fitler cartridge with screw nut | |||
| Filter element specification | 10" x 2 | 20" x 2 | 10" x 3 | 20" x 3 |
| Filtration area (m2) | 0.10 | 0.20 | 0.15 | 0.30 |
| Flow rate ( L/min ) | 30 | 60 | 40 | 70 |
| Suitable plating tank | 400 | 600 | 600 | 800 |
| Temperature range | 65℃ | 65℃ | 65℃ | 65℃ |
| Pump power ( W ) | 90w | 180w | 90w | 180w |
| Inlet / outlet port size | 1" | 1" | 1" | 1" |

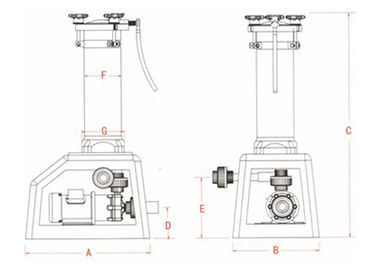

| Length A ( mm ) | 440 | 440 | 440 | 440 |
| Depth B ( mm ) | 340 | 340 | 340 | 340 |
| Height C (mm ) | 850 | 1110 | 850 | 1110 |
Description:
1. Excellent application to circulated filtration operations for plating solution, chemical solution, and many corrosion
liquid solution
2. Various filter cartridge elements available for choice and easy operate: lock core filter, pressure core filter,
pressure layered core filter, filter bag, paper filter, and bellow filter
3. One piece plastic injection filter chambers, the filter housings feature the high temperature resistance and acid /
alkali corrosion resistance
4. Motor guard avoids corrosion of motor in acid environment
5. The filter vessels provides high precision with wide filtration area, high efficiency, easy to operate and clean
6. Ergonomics design, the modular structure ensure simple interchangeability for filtering cartridge elements
replacement.
7. Motor overload and phase loss protection
8. Equipped with self-priming chemical pump or magnetic chemical pump upon requirement, leak proof,
higher performance and lower power consumption
9. Protecting cover prevent chemical corrosion damage
10. Standard accessories: flange
11. Optional parts: switch with guard, foot valve, check valve, look through tube, filter bag,

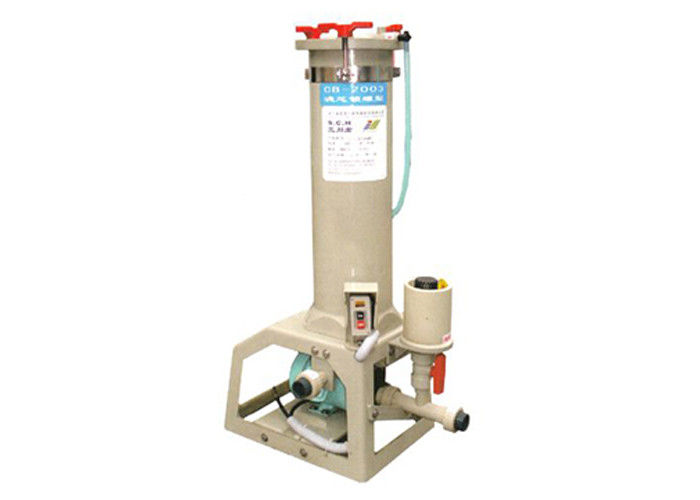

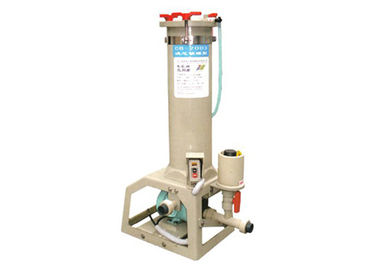

Complete view
Filter tank
Applications:
|
Electroplating solution |
PCB industry |
Dyeing industry |
|
Pharmaceutical |
Waste water treatment |
Effluent treatment plant |
|
Water treatment |
Food processing cleaning |
Photographic |
|
Chemical |
Petrochemical |
beverage |
|
Waste gas scrubber |
Waste gas absorption tower |
Reaction tank |
Competitive advantage
These filter chambers are designed for filtering process solutions where clarification will extend operating life and
improve quality. The filtration vessels and chemical pumps are made by one piece injection non-
metallic soultion contact plastic, CPVC, FRPP (Fiber glass reinforced polyepropylene), PVDF, which features
heavy duty construction, chemical, acid/alkali resistance.
