Side mount 12 laterals FRP Pressure Tanks Hub NSF Standard

Product Details:

Place of Origin:	China
Brand Name:	Purescience
Certification:	NSF/ISO9001/SGS
Model Number:	JD325

Payment & Shipping Terms:

Minimum Order Quantity:	500
Price:	negotiable
Packaging Details:	carton
Delivery Time:	4-6 weeks
Payment Terms:	L/C, T/T, D/P
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Product Name:	Hub And 12 Laterals	Riser Openings:	12
Suitable Tank Dia.:	13" - 48"	Connect:	Thread
Standard:	NSF / ISO9001 / SGS	Mount:	Side Mount
Model:	JD328
Highlight:	water tank filter , water purification tank

Hub and lateral for side mount 12 laterals control valves 4" - 8" thread

Specification

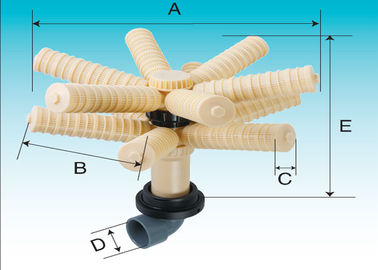

Model	A	B	C	D	E	F	Slot	Tank Dia.	Top opening
JD328	705	348	53	63 / 60.3	347	370	0.2/0.25/0.4	36"-40" (Dia 900-1000mm)	4" - 8" Thread
JD329	825	416	53	63 / 60.3	360	383	0.2/0.25/0.4	48"-40" (Dia. 1200mm-1500mm)	4" - 8" Thread
JD328N	705	348	53	63 / 60.3	366	-	0.2/0.25/0.4	36"-40" (Dia 900-1000mm)	4" - 8" Thread
JD329N	825	416	53	63 / 60.3	379	-	0.2/0.25/0.4	48"-40" (Dia. 1200mm-1500mm)	4" - 8" Thread

Riser pipe openning options:

-Solvent welded

-F NPT / BSP thread

Description

The top mount hub and lateral systems are designed for use with top mount water softeners or filter valves. The top

mount hub and lateral series is designed to accommodate 14" - 36" diameter fiberglass mineral tanks with 4" - 6" top

openings. The top mount hub and lateral series consists of an ABS hub and 8-PVC slotted laterals with ¾" threaded

adapters. The hub is available with a number of openings to accommodate different riser pipe diameters. To install,

simply solvent weld or thread the riser pipe into the hub and insert it into the tank through the top opening. Thread the

laterals into the hub and extend the hub and laterals to the bottom of the mineral tank..

Applications:

Residential tanks (Dia.: 6"-13”)	Water filter, water softener
Commercial tank (Dia.: 14"-24”)	Water filter, water softener, prefilter for water treatment and storage
Industrial tanks (Dia.: 30"-63”)	Water filter, water softener, prefilter for water treatment and storage

Competitive advantage

We have been manufacturing water distributors, disperer and pressure tanks since 1997, and accumulated good reputation for our good quality, reliability and service.
