Battery Powered Electromagnetic Water Flow Meter For Industrial Diameter DN100

Product Details:

Place of Origin:	China
Brand Name:	Purescience
Certification:	ISO14001-2000/ISO9001-2008/GB/T28001/MC01010429
Model Number:	EMF80

Payment & Shipping Terms:

Minimum Order Quantity:	5 sets
Price:	negotiable
Packaging Details:	carton
Delivery Time:	3 weeks
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	500 sets per month

Contact Now

Detailed Product Description

Product Name:	Electromagnetic Flow Meter	Type:	Compact Or Remote
Tube Lining:	CR, PTFE	Flow Velocity Range:	1-15 M/s
Pressure Rating:	PN16, PN25, PN40 Mpa	Accuracy:	0.5% R
Pipe Dia.:	DN25-DN300	Connect Port:	Flange
Enclosure Protection:	IP68	Power Supply:	100-240 VAC / 18-36 VDC
Highlight:	liquid flow meter , ultrasonic water meter

Battery powered electromagnetic water flow meter for industrial use R200 Class B Diameter DN100

Product description

The electromagnetic water meter is with battery-powered high-performance water meter designed for water and wastewater industry to accurately measure the water flow in closed conduits. It is ideal for remote locations in municipal, irrigation, wastewater treatment and industrial liquid processes industries where no power connection is available.

Key Features

Stand alone water meter with battery lifetime for more than 4 years. Easy battery change
Billing grade with class 0.5 accuracy
Plug and play. No need for programming, no need for wiring
Compact and rugged design. IP68 submersible
Large measurement range. Bi-directional
No moving parts to wear and tear. Maintenance free
Short straight-pipe run requirement. Suitable for any desired installation location
Optional GSM/GPRS wireless and turnkey data service.

Applications

MUNICIPAL WATER
INDUSTRIAL LIQUID
WASTEWATER
IRRIGATION
CHEMICALS
POWER SUPPLY
PHARMACEUTICALS
FOOD
PAPER PLANTS
METALLURGICAL MINES

Technical parameters:
1. Diameter: DN50 - DN500
2. Pressure rating: PN10/PN16/PN25/PN40
3. Media temperature: 0-80 C (Rubber), 0-120 C (PTFE)
4. Environment temperature: 0 - 60 C
5. Protection: IP68 (flow sensor)
6. Explosion proof: EXID

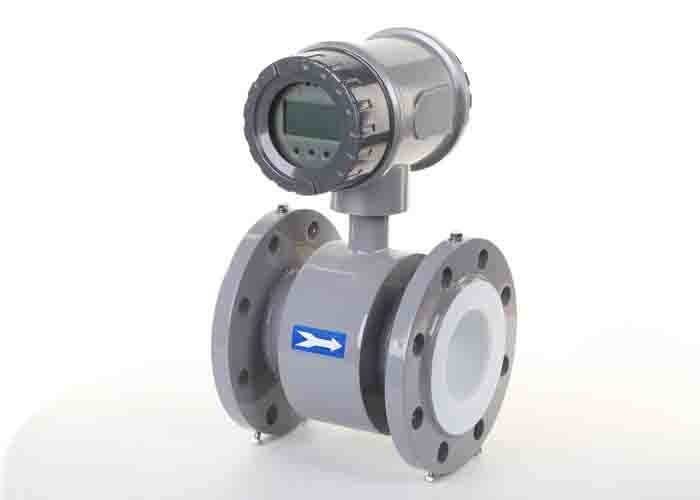

Battery Powered Electromagnetic Water Flow Meter For Industrial Diameter DN100 0

Parameters

Product name	Electromagnetic flowmeter
Product type	Local\|compact display	Remote display	Signal converter
Model	IYF-E	IYF-F	IRT
Pipe Diameter (mm)	DN10-DN2000
Power supply	100-240 VAC / 18-36 VDC
Accuracy	+ 0.5%	+ 0.5%	+ 0.5%
Power consumption	<6w	<6w	<6w
Enclosure rating	IP65	IP68	IP65
Liquid temperature	-25-120℃	-25-120℃	-25-120℃
Ambient temperature	-25-50℃	-25-50℃	-25-50℃
Relative humidity	10-90%	10-90%	10-90%
Meter ratio	1:100	1:100	1:100
Flow direction	Bi-direction flow	Bi-direction flow	Bi-direction flow
Communication	RS485 / Bacnet	RS485 / Bacnet	RS485 / Bacnet
Signal Output	4-20mA/Pulse/Frequency	4-20mA/Pulse/Frequency	4-20mA/Pulse/Frequency

Measure Accuracy

Pipe Dia (mm)	Velocity (m/s)	Accuracy
3-20	<0.3	+ 0.25% FS
	0.3-1	+ 1.0% Readout
	1-15	+ 0.25% Readout
25-600	0.1-0.3	+ 0.25% FS
	0.3-1	+ 0.5% Readout
	1-15	+ 0.3% Readout
700-3000	<0.3	+ 0.25% FS
	0.3-1	+ 1.0% Readout
	1-15	+ 0.25% Readout

Applications:
Irrigation, clean water, paper pulp, slurry, sewage, waste water, HVAC/R system monitoring, residential water meter, industrial & commercial water utilities
