12 laterals control valves 4" - 8" thread For pressure water tank

Hub and lateral for top mount 12 laterals control valves 4" - 8" thread

Specification

Riser pipe openning options:

-Solvent welded

-F NPT / BSP thread

Description

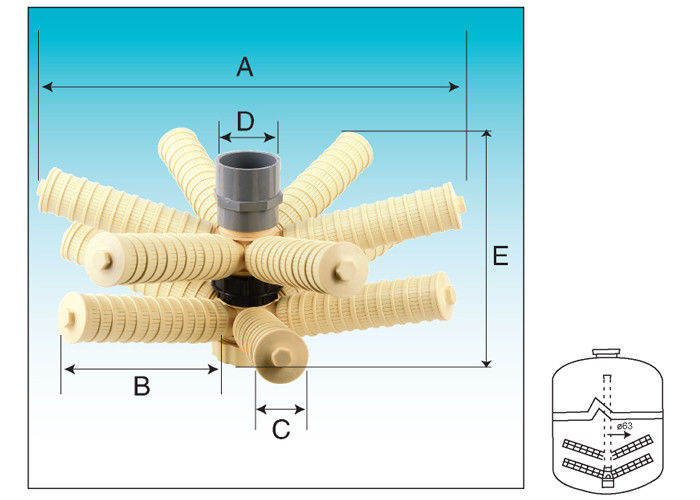

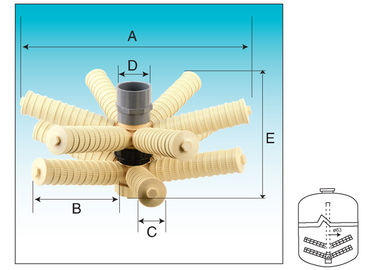

The top mount hub and lateral systems are designed for use with top mount water softeners or filter valves. The top

mount hub and lateral series is designed to accommodate 14" - 36" diameter fiberglass mineral tanks with 4" - 6" top

openings. The top mount hub and lateral series consists of an ABS hub and 8-PVC slotted laterals with ¾" threaded

adapters. The hub is available with a number of openings to accommodate different riser pipe diameters. To install,

simply solvent weld or thread the riser pipe into the hub and insert it into the tank through the top opening. Thread the

laterals into the hub and extend the hub and laterals to the bottom of the mineral tank..

Applications:

Competitive advantage

We have been manufacturing water distributors, disperer and pressure tanks since 1997, and accumulated good reputation for our good quality, reliability and service.
